How to Troubleshoot and Repair a Faulty AC Contactor

By Fix4U Team
Air Conditioners, Appliances

Of all electrical controls in an air conditioner, few components have a tougher job than the contactor. This device rapidly makes and breaks high voltage connections to start motors and activate compressors when cooling is demanded.

After thousands of switching cycles, contactors eventually wear out or fail. Learning to spot malfunctions provides the opportunity to restore cooling before a hot spell hits. This AC troubleshooting guide from Fix4U Repairs will cover identifying bad contactors and how to properly replace them.

Understanding AC Contactor Operation

To diagnose issues, you need to understand normal operation:

  • The contactor acts as a high voltage switch, allowing or interrupting power to the compressor and fan motor.
  • When energized, internal contacts close to allow 240VAC to flow to components.
  • A low voltage coil actuates the contactor when 24V power is applied by the thermostat.
  • Contact surfaces are spring loaded to rapidly open when coil power releases.
  • Correctly rated contacts, tight wiring, and proper coil voltages prevent overheating damage during switching.

With such a critical role, even small contactor problems bring cooling to a halt.

Signs of Contactor Failure

Watch for these symptoms indicating a failing or faulty contactor:

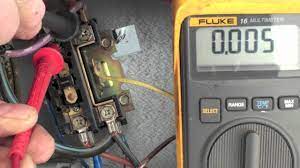

Fix4U Repairs' Technicians Fixing Ac Contactor Problem In Gta
  • Condenser unit not starting up when thermostat calls for cooling.
  • Contactor clicking but condenser components not activating.
  • Condenser fan running but compressor inactive.
  • Burning smell from overheated contacts.
  • Higher than normal operation noise when contactor closes.
  • Evidence of pitting, welding, or oxidation on contact points.
  • Uneven contact wearing from arcing or point bounce.
  • Visibly damaged or melted contactor casing or coil.
  • Units runs briefly but contactor trips breaker or blows fuse.

What Causes a Contactor to Malfunction?

Common contactor failure causes include:

  • Repeated Electrical Arcing: Arcing during opening and closure erodes contact points eventually creating failure.
  • Cycling Loads: Frequent starting of motors and compressors strains contacts.
  • Voltage Spikes: Power surges from electrical storms or grid issues can weld together contacts.
  • Overheating: Heat buildup from high loads or poor ventilation bakes internal parts.
  • Contactor Chatter: Rapid fluttering when trying to close indicates internal issues.
  • Improper Sizing: Contacts undersized for the electric load will overheat and fail prematurely.
  • Moisture & Dirt: Accumulated dirt and moisture interference prevents proper closure.

Replacing a Worn or Malfunctioning Contactor

When replacing a defective contactor:

  • Turn off electrical power to AC unit at breaker before accessing system.
  • Unhook low voltage control wiring from bad contactor.
  • Disconnect line voltage wires from contact points.
  • Remove mounting screws and extract old contactor.
  • Install replacement with properly rated contacts for the condenser.
  • Reconnect low voltage control wiring to coil lugs.
  • Attach line voltage wires to new contact points.
  • Carefully test operation once unit is reassembled.

Faulty AC contactor? Call Now and Fix your AC!

Hiring a Professional for Optimal Repair

Given the risks of high voltage electrical work, contactor repair is best left to qualified HVAC technicians like those at Fix4U Repairs. Our experts can:

  • Accurately determine correct replacement contactor specs.
  • Safely access contactor in difficult locations.
  • Use lockout procedures to avoid electrical hazards.
  • Verify proper operation after contactor installation.

Trust our techs for safe, proper contactor repairs to keep you comfortable this season!

Preventing Contactor Malfunctions

Steps to extend contactor lifespan:

  • Keep condenser fins and coils clean to avoid overheating systems.
  • Use hard start capacitor kits to reduce motor strain on contacts.
  • Install system surge suppressors to avoid electrical damage.
  • Replace old contactors during routine maintenance.
  • Ensure system is properly sized for your home. Oversized units cycle more.

Keep cool all summer with a perfectly functioning AC contactor. Schedule maintenance today with the experts at Fix4U Repairs!
