Air Conditioner Transformer Troubleshooting & Replacement

By Fix4U Team
Air Conditioners, Appliances

While it operates behind the scenes, a properly working transformer is essential for your air conditioning system. This device takes high voltage power from your home and converts it to lower voltages for operating the thermostat, contactor coils, and control boards.

When an aging transformer begins to fail, seemingly random comfort and efficiency issues arise. Catching problems early provides an opportunity for quick replacement before AC problems become severe. This AC troubleshooting guide from Fix4U Repairs will cover identifying faulty transformers and installation tips when replacement is needed.

How Does a Transformer Work in an AC Unit?

To understand transformer problems, it’s good to know what they do:

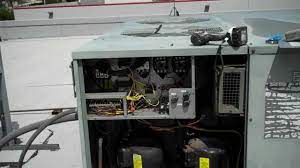

Fix4U Repairs' Technicians Fixing Ac Transformer Troubleshooting Problem In Gta
  • Transformers convert high 120-240V power from the electrical panel down to 24V to power AC components safely.
  • This 24V current allows control boards, thermostats, valves, and contactors to operate.
  • Copper wire coils around a ferrous core facilitate electromagnetic induction to transform voltages.
  • Ceramic wire guides isolate primary and secondary transformer windings.
  • Proper grounding, overload protection, and adequate wire gauges prevent short circuits.

With so many components relying on the transformer for operation, even small electrical issues quickly lead to cooling comfort problems.

Signs of a Failing or Bad AC Transformer

Be on the lookout for these signs of a transformer problem:

  • No display on the thermostat
  • Blower and condenser won’t activate but compressor hums
  • AC blows fuses or trips breaker when starting
  • Intermittent operation as transformer overheats
  • Thermostat works but blower and compressor don’t
  • Higher than normal operation noises and tripped safety cut-outs
  • Burning plastic smell from overheated windings
  • Visibly cracked, damaged, or rusted transformer casing

What Causes Transformer Failure?

Common reasons for transformer breakdown include:

  • Overheating: Short circuited windings generate excess heat melting insulation until failure occurs.
  • Power Surges: Spikes in voltage from storms or disconnecting loads damage windings.
  • Corroded Terminals: Moisture from condensation forms corrosion interfering with contacts.
  • Incorrect Sizing:Too small of a transformer strains beyond capacity with added system loads.
  • Improper Wiring:Incorrect wire gauge or loose terminal connections generates heat and arcing.
  • Age & Use:Eventually internal windings, wire guides, and insulation wear out from repeated heating and cooling.
  • Rodent Damage: Mice or rats chewing through wire insulation exposes windings to short.

Replacing a Failed AC Transformer

Replacing a bad transformer involves:

  • Turning power off at the breaker/disconnect and verifying it’s de-energized.
  • Removing cover on the transformer housing.
  • Detaching and labeling all low and line voltage wires.
  • Removing mounting fasteners to extract old transformer.
  • Installing properly rated replacement matching system requirements.
  • Reconnecting wires to proper terminals.
  • Restoring power once housing is secured.
  • Testing operation of components relying on transformer.

AC transformer troubles? Call Now and Fix your AC!

Hiring a Professional for Transformer Replacement

Due to working in tight spaces around high voltage lines, transformer replacement is best left to qualified HVAC technicians like those at Fix4U Repairs. Our experts can:

  • Determine correct replacement transformer specs.
  • Safely access transformers in difficult furnace/air handler locations.
  • Isolate power and use lockout procedures to prevent electrical hazards.
  • Verify proper low voltage output when installation is complete.

Trust our techs for safe, seamless transformer repairs! Call (647) 363-5205 to schedule service.

Preventing Transformer Failures

Routine AC maintenance goes a long way towards avoiding issues:

  • Keep the transformer shaded from direct sunlight to prevent overheating in its housing.
  • Check terminals annually for tightness and corrosion.
  • Install a hardwired surge protector to minimize power spikes.
  • Replace the transformer as a precaution every 8-10 years.

Keep cool all season long with a properly operating AC transformer. Contact Fix4U Repairs to schedule maintenance!
