AC Thermostat Wiring Problems: Troubleshooting & Repair

By Fix4U Team
Air Conditioners, Appliances

As the brain directing your air conditioning system, a properly wired thermostat is critical for maintaining summer comfort. But loose connections, wire damage, and improper hookups can all prevent the thermostat from controlling your AC.

Diagnosing and correcting thermostat wiring issues quickly gets the cooling back on before indoor temps become unbearable. This AC troubleshooting guide from Fix4U Repairs will cover identifying and fixing common thermostat wiring problems.

How Thermostat Wires Control Your AC

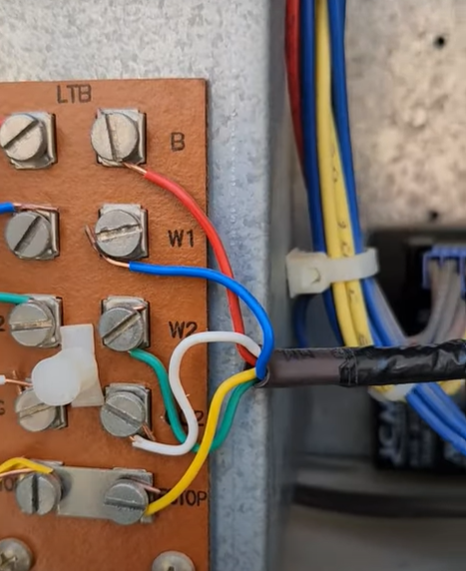

Fix4U Repairs' Technicians Fixing Ac Thermostat Wiring Problem In Gta

Here’s a quick overview of how thermostat wiring works:

  • Low voltage wires send signals from the thermostat to the furnace control board to start cooling, heating, or fan operation.
  • Typically 18-24 gauge solid core wire is run through the walls to connect the thermostat to the HVAC system.
  • Wires are connected to specific terminals on the thermostat base and control board for functions like cooling, fan, heat, etc.
  • Wire colors are standardized (white, blue, red, etc) to aid proper thermostat installation.
  • A common wire (C) provides constant power to the thermostat itself.

With this wiring acting as the communication network between the thermostat and HVAC system, any disruption prevents operation.

Signs of AC Thermostat Wiring Problems

Watch for these symptoms of wiring issues:

  • Display blank or temperature fluctuating
  • Unit fails to turn on even when temperature rises
  • Fan, cooling, or heat only partially works
  • Frequent unexplained shutting off of system
  • Burning smell from overheated furnace components
  • High humidity but AC not activating
  • Frosted evaporator coils from lack of fan airflow
  • “Check wiring” or error code on thermostat

What Causes Thermostat Wiring Issues?

Several factors can lead to wiring problems:

  • Loose Connections: Vibration and past tampering loosen wire connections to terminals.
  • Line Damage: Bending, stapling, or improper stripping during installation can damage wires.
  • Moisture & Corrosion: Condensation or water leaks in walls corrode contacts.
  • Incorrect Wiring: Hooking wires to wrong terminals disables functions.
  • Wire Gauge/Type: Using unapproved wire types other than 18-24 gauge solid core can cause connectivity issues.
  • Rodents & Pests: Chewed insulation exposes wires to contact points.
  • Power Surges: Power spikes on the system can overload wiring.
  • Old Age: Eventually copper contacts oxidize and wiring insulation becomes brittle.

Troubleshooting Bad Thermostat Wiring

Start diagnosis with these thermostat wiring checks:

  • Remove thermostat cover and ensure wires are securely fastened to terminals.
  • Inspect wires for damage like chewing, corrosion, cracks.
  • Verify proper wire colors are terminated to matching system functions.
  • Check continuity of individual wires using multimeter.
  • Ensure exposed wire at thermostat and HVAC system makes solid contact.
  • Confirm low voltage power enabled and reaching thermostat.

How to Repair AC Thermostat Wiring

Steps for remedying wiring problems:

Reseat Loose Wires

  • Power off to HVAC system. Remove faceplate to access wire terminals.
  • Push in any loose wire ends until fully inserted and screw tight.

Replace Damaged Wires

  • Splice new solid core HVAC wire using approved connectors.
  • Staple neatly along joists and tape to existing bundle.
  • Terminate properly at thermostat and control board.

Correct Miswiring

  • Reference wire diagram for your HVAC system to fix incorrect terminals.
  • Ensure wire colors match functions (blue = common, red = heat etc.)

Add Common Wire

  • If an unused common wire exists in bundle, connect at control board and thermostat C terminal.
  • If no spare wire, run new common wire between controller and thermostat.

Need more detailed guidance? Call Now and Fix your AC!

Hire a Professional for Optimal Repair

Given the complexity and risks, it’s recommended to have an HVAC technician handle any thermostat wiring repairs or replacement. The pros at Fix4U Repairs are experts at safely diagnosing and correcting thermostat wiring problems in all AC systems. Trust us for fast, code-compliant wiring repairs! Call (647) 363-5205.

Preventing Future AC Wiring Issues

Simple steps to maintain your thermostat wiring:

  • Avoid bending and stapling wires sharply during installation.
  • Install insulated covers and junction boxes to protect wire splices.
  • Keep thermostat wiring away from plumbing pipes and leaks.
  • Arrange for periodic professional inspection as preventive maintenance.

Enjoy year after year of uninterrupted cooling comfort – contact Fix4U Repairs today to schedule expert AC system maintenance and repairs!
